PH/PJ 7.5-25 Ton Split System Heat Pumps

11-11.6 EER (11.4-12.4 IEER) (PC) 11-11.6 (11.4-12.4 IEER) (PD)

Lightweight, durable Champion® PH/PJ Split-system Units provide flexibility and easy installation for commercial applications.

Features Smart Equipment
Condenser coils constructed from microchannel aluminum tubing
5-year Limited Compressor Warranty and 1-year Parts Limited Warranty

PH/PJ 7.5-25 Ton Split System Heat Pumps

Reliable Performance in a Compact Design

Champion® PH/PJ Split-system Heat Pump Units deliver the performance you need for reliable operation in today's demanding commercial environments. Compact designs, clean styling and quiet operation make these units an ideal fit for your application. With a durable build, condenser coils made with Microchannel aluminum tubing, aluminum fins and vinyl-coated fan guards, these split units resist rust and deliver long-lasting, efficient operation.

Features

Meets EPACT 2005 and exceeds ASHRAE 90.1-1999 efficiency standards
Inherently protected condenser fan motors
Five-minute, anti-short cycle timer and minimum compressor run time
Factory-installed disconnects, convenience outlet and technical coil option
Durable build with condenser coils constructed with microchannel aluminum tubing and aluminum fins
Self-contained, high and low pressure controls
Class 2, 24-volt, thermostat control circuit
Compressor staging for capacity reduction provides more economical operation and even temperature levels within the conditioned space

Includes filter drier ready for field installation and is Smart Equipment enabled
2-pipe and 4-pipe configurations
Standard operation to 40°F; factory or field-installed low-ambient VFD control to 0°F
Scroll compressors provide both high efficiency and reliability
Crankcase heaters that will be de-energized when the compressor is operating
Solid state or internal line break compressor motor protection
Copper stub-outs are factory-mounted on the suction and liquid lines to simplify field piping connections

Benefits

EASY INSTALLATION

These compact units install easily on rooftops and at ground level thanks to a lightweight design and simplified piping connections.

RELIABLE PERFORMANCE

Built-in protections as well as five-minute, anti-short cycle timer and minimum compressor run time provide greater peace of mind.

FLEXIBILITY

Choose two-pipe (PH) or four-pipe (PJ) configurations for on-site flexibility and factory- or field-installed low ambient VFD control to 0˚F.

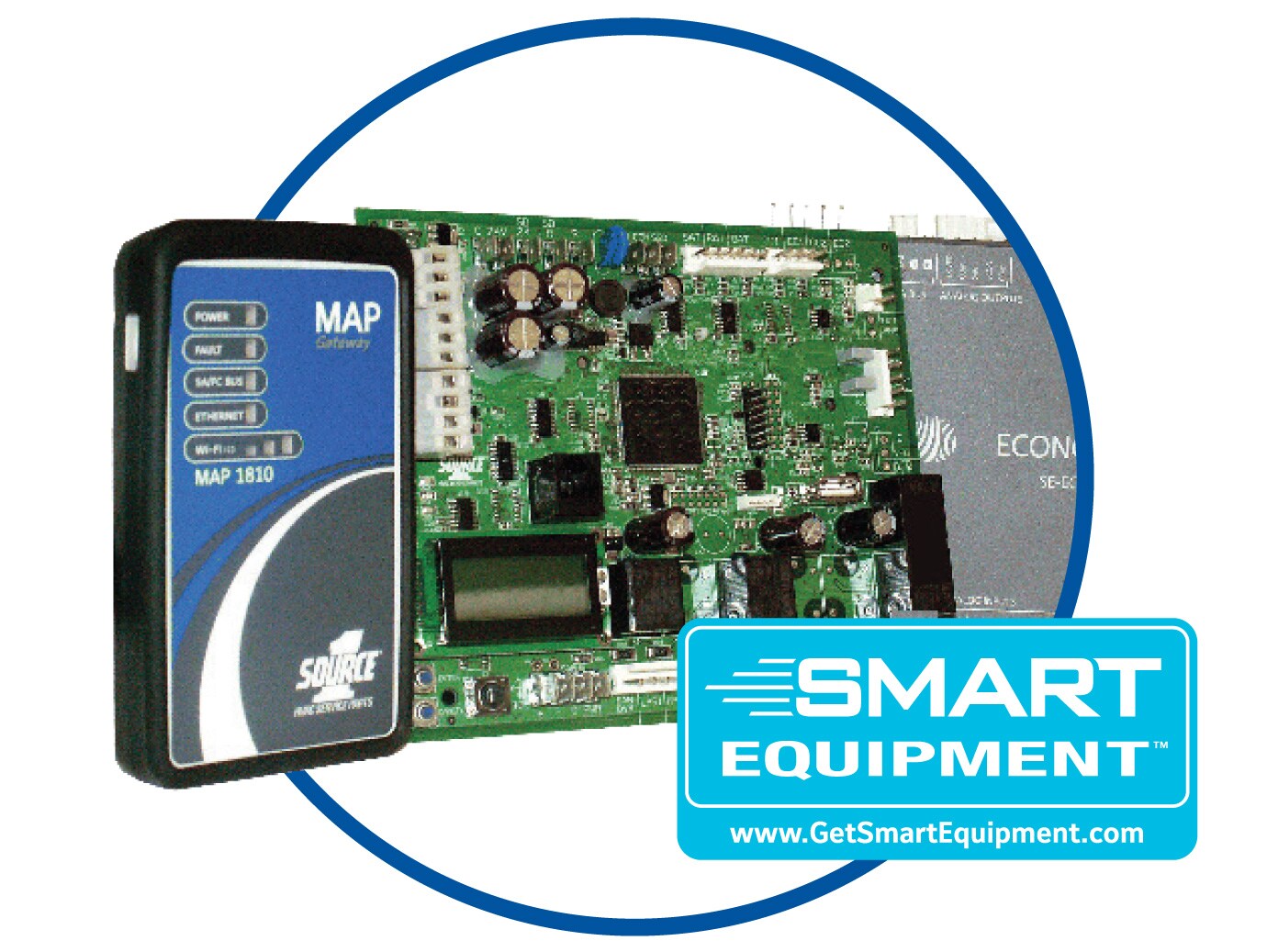

Remote Monitoring With Smart Equipment

Every PH/PJ 7.5-25 Ton Split System Heat Pumps Units come standard with next-generation Smart Equipment – a digital control system for easier system setup, optimization and maintenance. Optional remote data access is available via our Mobile Access Port (MAP), and our Fault Detection and Diagnostics (FDD) system is available to further reduce service steps. Benefits include:
